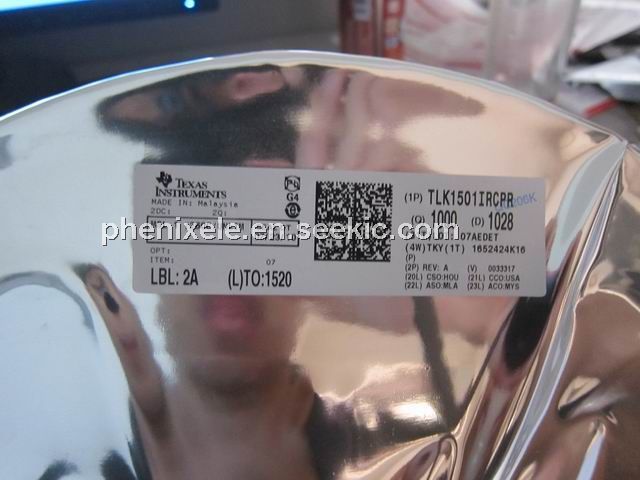

TLK1501IRCPR

TLK1501IRCPR, 0.6 to 1.5 GBPS tranceiver, 3 V, 250 mW, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.80~5.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	5.80 / Piece

PartNumber:: TLK1501IRCPR

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Erin's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-06

From Other Seller

Part Number:TLK1501IRCPR
US $5.80 - 5.80
Quantity:

piece

Product Summary

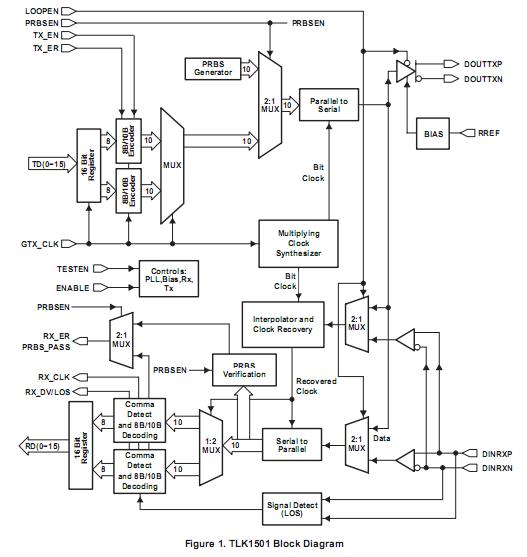

The TLK1501IRCPR is a 0.6 to 1.5 GBPS tranceiver. It supports an effective serial interface speed of 0.6 Gbps to 1.5 Gbps, providing up to 1.2 Gbps of data bandwidth. The TLK1501IRCPR can also be used to replace parallel data transmission architectures by providing a reduction in the number of traces, connector terminals, and transmit/receive terminals. The TLK1501IRCPR performs data conversion parallel-to-serial and serial-to-parallel.

Parametrics

TLK1501IRCPR absolute maximum ratings: (1)Supply voltage:-0.3 to 3 V; (2)Voltage range at TXD, ENABLE, GTX_CLK, TX_EN, TX_ER, LOOPEN, PRBS_PASS:-0.3 to 4 V; (3)Voltage range at any other terminal except above:-0.3 to VDD+0.3V; (4)Storage temperature:-65℃ to 150℃; (5)Electrostatic discharge:HBM:3 KV, CDM:1.5 KV; (6)Characterized free-air operating temperature range:-40℃ to 85℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260℃.

Features

TLK1501IRCPR features: (1)Hot Plug Protection; (2)0.6 to 1.5 Gigabits Per Second (Gbps) Serializer/Deserializer; (3)High-Performance 64-Pin VQFP Thermally Enhanced Package(PowerPAD) ; (4)2.5 V Power Supply for Low Power Operation; (5)Programmable Voltage Output Swing on Serial Output; (6)Interfaces to Backplane, Copper Cables, or Optical Converters; (7)Rated for Industrial Temperature Range; (8)On-Chip 8-Bit/10-Bit (8B/10B) Encoding/Decoding, Comma Alignment, and Link Synchronization; (9)On-Chip PLL Provides Clock Synthesis From Low-Speed Reference; (10)Receiver Differential Input Thresholds 200 mV Minimum; (11)Typical Power: 250 mW; (12)Loss of Signal (LOS) Detection; (13)Ideal for High-Speed Backplane Interconnect and Point-to-Point Data Link.
