Product Summary
The MCZ33290EFR2 is a serial link bus interface device designed to provide bi-directional half-duplex communication interfacing in automotive diagnostic applications. It is designed to interface between the vehicle’s on-board microcontroller and systems off-board the vehicle via the special ISO K line. The MCZ33290EFR2 is designed to meet the Diagnostic Systems ISO9141 specification. The device’s K line bus driver’s output is fully protected against bus shorts and overtemperature conditions.
Parametrics
MCZ33290EFR2 absolute maximum ratings: (1)VDD DC Supply Voltage, VDD: -0.3 to 7.0V; (2)VBB Load Dump Peak Voltage, VBB(LD): 45V; (3)ISO Pin Load Dump Peak Voltage, VISO: 40V; (4)ISO Short Circuit Current Limit, IISO(LIM): 1.0A; (5)ESD Voltage, Human Body Model, VESD1: ±2000; Machine Model, VESD2: ±200V; (6)ISO Clamp Energy, Eclamp: 10mJ; (7)Storage Temperature, Tstg: -55 to +150℃; (8)Operating Case Temperature, TC: -40 to +125℃; (9)Operating Junction Temperature, TJ: -40 to +150℃; (10)Power Dissipation, TA = 25℃, PD: 0.8W; (11)Thermal Resistance Junction-to-Ambient, RθJA: 150℃/W.
Features
MCZ33290EFR2 features: (1)Operates Over Wide Supply Voltage of 8.0 to 18V; (2)Operating Temperature of -40 to 125℃; (3)Interfaces Directly to Standard CMOS Microprocessors; (4)ISO K Line Pin Protected Against Shorts to Ground; (5)Thermal Shutdown with Hysteresis; (6)ISO K Line Pin Capable of High Currents; (7)ISO K Line Can Be Driven with up to 10 nF of Parasitic Capacitance; (8)8.0 kV ESD Protection Attainable with Few Additional Components; (9)Standby Mode: No VBat Current Drain with VDD at 5.0 V; (10)Low Current Drain During Operation with VDD at 5.0 V; (11)Pb-Free Packaging Designated by Suffix Code EF.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

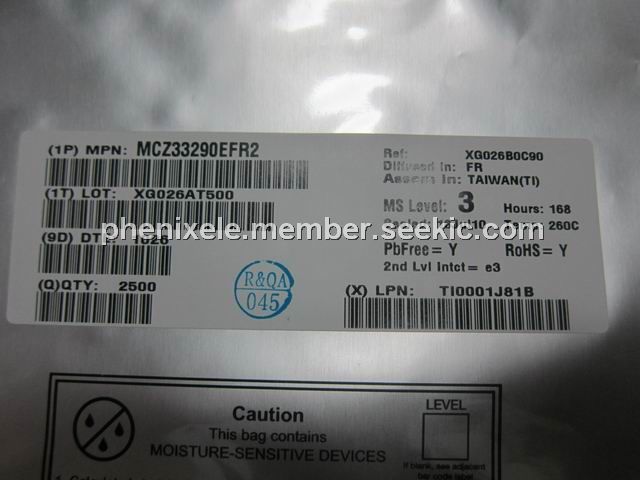

 MCZ33290EFR2 |
Freescale Semiconductor |
Peripheral Drivers & Components (PCIs) ISO LINK |
Data Sheet |
Negotiable |
|
||||
