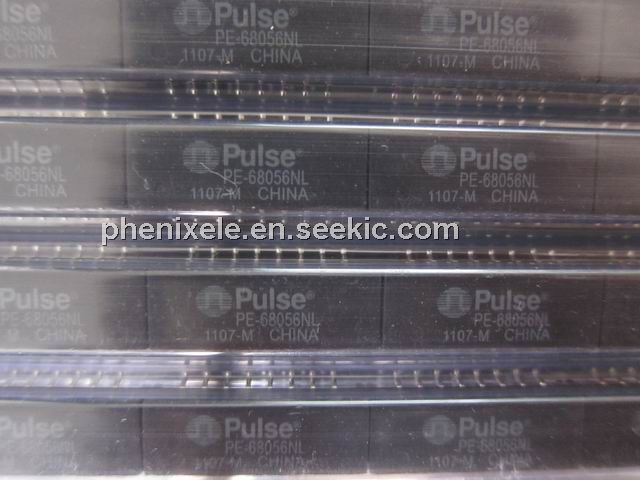

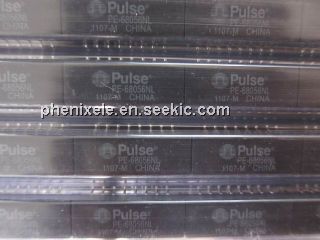

Product Summary

The PE-68056NL is a surface mount 10base-t interface module fully integrated for adapter, hub, and motherboard applications.

Parametrics

PE-68056NL absolute maximum ratings: (1)Insertion loss to 10MHZ: -1.0 dB max; (2)hipot: 1500 vrms; (3)Weight: 2.5 grams; (4)Tube: 20/tube; (5)PE-680XX: 250/reel.

Features

PE-68056NL features: (1)Available in enhanced or standard design versions; (2)Low profile surface mount package; (3)E2000 series part numbers designed for AMD, DEC, LSI, Motorola, and National transceivers; (4)235℃ peak infrared reflow temperature rating.

Diagrams

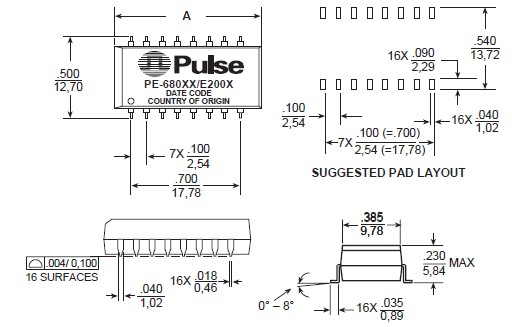

PE-68056NL pin connection
