Product Summary

The DS1225Y-150 64K Nonvolatile SRAM is a 65,536–bit, fully static, nonvolatile RAM organized as 8192 words by 8 bits. Each NV SRAM has a self–contained lithium energy source and control circuitry which constantly monitors VCC for an out–of–tolerance condition. The DS1225Y-150 can be used in place of existing 8K × 8 SRAMs directly conforming to the popular bytewide 28–pin DIP standard. The DS1225Y-150 also matches the pinout of the 2764 EPROM or the 2864 EEPROM, allowing direct substitution while enhancing performance.

Parametrics

DS1225Y-150 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: –0.3V to +7.0V; (2)Operating Temperature: 0℃ to 70℃; –40℃ to +85℃ for IND parts; (3)Storage Temperature: –40℃ to +70℃; –40℃ to +85℃ for IND parts; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS1225Y-150 features: (1)10 years minimum data retention in the absence of external power; (2)Data is automatically protected during power loss; (3)Directly replaces 8K × 8 volatile static RAM or EEPROM; (4)Unlimited write cycles; (5)Low-power CMOS; (6)JEDEC standard 28-pin DIP package; (7)Read and write access times as fast as 150 ns; (8)Full ±10% operating range; (9)Optional industrial temperature range of -40℃ to +85℃, designated IND.

Diagrams

DS1225Y-150 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

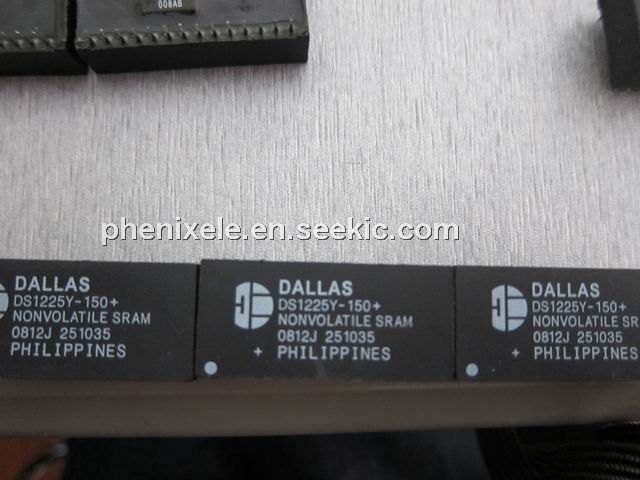

DS1225Y-150
DS1225Y-150

Maxim Integrated Products

NVRAM

Data Sheet

Negotiable
DS1225Y-150+
DS1225Y-150+

Maxim Integrated Products

NVRAM 64k Nonvolatile SRAM

Data Sheet

Negotiable
DS1225Y-150IND+
DS1225Y-150IND+

Maxim Integrated Products

NVRAM

Data Sheet

Negotiable
DS1225Y-150IND
DS1225Y-150IND

Maxim Integrated Products

NVRAM

Data Sheet

Negotiable
