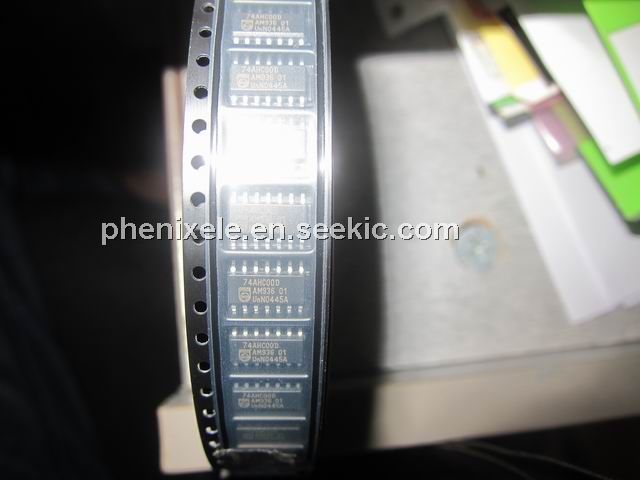

74AHC00D

74AHC00D, high-speed Si-gate CMOS, 7.0 V, 20 mA, 500 mW, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.13 / Piece

PartNumber:: 74AHC00D

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Erin's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-06

From Other Seller

Part Number:74AHC00D
US $0.13 - 0.13
Quantity:

piece

Product Summary

The 74AHC00D is a high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). The 74AHC00D is specified in compliance with JEDEC standard No. 7A. The 74AHC00D provides the 2-input NAND function.

Parametrics

74AHC00D absolute maximum ratings: (1)VCC DC supply voltage: -0.5 to +7.0 V; (2)VI input voltage range: -0.5 to +7.0 V; (3)IIK DC input diode current VI < -0.5 V;: 20 mA; (4)IOK DC output diode current VO < -0.5 V or VO > VCC + 0.5 V;: ±20 mA; (5)IO DC output source or sink current -0.5 V < VO < VCC + 0.5 V: ±25 mA; (6)ICC DC VCC or GND current: ±75 mA; (7)Tstg storage temperature range: -65 to +150 °C; (8)PD power dissipation per package for temperature range: -40 to +125 °C; : 500 mW.

Features

74AHC00D features: (1)Balanced propagation delays; (2)All inputs have Schmitt-trigger actions; (3)Inputs accept voltages higher than VCC; (4)For AHC only: operates with CMOS input levels; (5)For AHCT only: operates with TTL input levels; (6)Specified from -40 to +85 and +125 °C.
