Product Summary

The SN74LS593N is an 8-bit binary counter with input registers. It comes in a 16-pin package and consists of a parallel input, 8-bit storage register feeding an 8-bit binary counter.

Parametrics

SN74LS593N absolute maximum ratings: (1)supply voltage, VCC: 7V; (2)input voltage: 7V; (3)off-state output voltage: 5.5V; (4)operating free-air temperature range: -55 to 125℃; (5)storage temperature range: -65 to 150℃.

Features

SN74LS593N features: (1)parallel register inputs; (2)con\unter has direct overriding load and clear; (3)accurate counter frequency: DC to 20MHz.

Diagrams

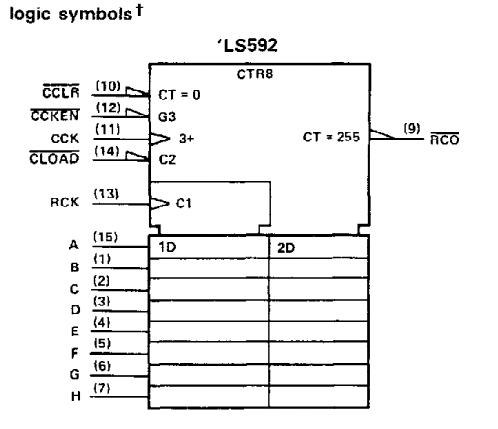

SN74LS593N pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LS593N
SN74LS593N

Texas Instruments

Counter ICs 8-Bit Binary w/Input Rgstr & 3-St Output

Data Sheet

0-1: $7.26
1-25: $6.17
25-100: $5.74
100-250: $5.26
