AMIS42665TJAA1RG

Product Summary

The AMIS42665TJAA1RG CAN transceiver is the interface between a controller area network (CAN) protocol controller and the physical bus and may be used in both 12 V and 24 V systems. The AMIS42665TJAA1RG provides differential transmit capability to the bus and differential receive capability to the CAN controller. Due to the wide common−mode voltage range of the receiver inputs, the AMIS42665TJAA1RG is able to reach outstanding levels of electromagnetic susceptibility (EMS). Similarly, extremely low electromagnetic emission (EME) is achieved by the excellent matching of the output signals.

Parametrics

AMIS42665TJAA1RG absolute maximum ratings: (1)VCC Supply Voltage: -0.3 to +7 V; (2)VCANH DC Voltage at Pin CANH 0 < VCC < 5.25 V; No Time Limit:-50 to +50 V; (3)VCANL DC Voltage at Pin CANL 0 < VCC < 5.25 V; No Time Limit: -50 to +50 V; (4)VSPLIT DC Voltage at Pin VSPLIT 0 < VCC < 5.25 V; No Time Limit: -50 to +50 V; (5)VTxD DC Voltage at Pin TxD: -0.3 to VCC + 0.3 V; (6)VRxD DC Voltage at Pin RxD: -0.3 to VCC + 0.3 V; (7)VSTB DC Voltage at Pin STB: -0.3 to VCC + 0.3 V; (8)Vtran(CANH)Transient Voltage at Pin CANH Note 1: -300 to +300 V; (9)Vtran(CANL)Transient voltage at Pin CANL Note 1: -300 to +300 V; (10)Vtran(VSPLIT)Transient Voltage at Pin VSPLIT Note 1: -300 to +300 V; (11)Latch-up Static Latch-up at all Pins Note 3: 120 mA; (12)Tstg Storage Temperature: -55 to +150 °C; (13)Tamb Ambient Temperature: -40 to +125 °C; (14)TJ Maximum Junction Temperature: -40 to +170 °C.

Features

AMIS42665TJAA1RG features: (1)Wake&#8722;up (WU)Over Bus; (2)Voltage Source via VSPLIT Pin for Stabilizing the Recessive Bus Level (Further EMC Improvement); (3)Ideal Passive Behavior when Supply Voltage is Removed; (4)Extremely Low Current Standby Mode; (5)Compatible with the ISO 11898 Standard (ISO 11898&#8722;2, ISO 11898&#8722;5 and SAE J2284); (6)High Speed (up to 1 Mbps); (7)Ideally Suited for 12 V and 24 V Industrial and Automotive Applications; (8)Extremely Low Current Standby Mode with Wake&#8722;up via the Bus; (9)Low EME Common&#8722;Mode Choke is No Longer Required; (10)Differential Receiver with Wide Common&#8722;Mode Range (35 V)for High EMS; (11)Transmit Data (TxD)Dominant Time&#8722;out Function; (12)Thermal Protection; (13)Bus Pins Protected against Transients in an Automotive Environment; (14)Power Down Mode in which the Transmitter is Disabled; (15)Bus and VSPLIT Pins Short Circuit Proof to Supply Voltage and Ground; (16)Logic Level Inputs Compatible with 3.3 V Devices; (17)These are Pb&#8722;Free Devices.

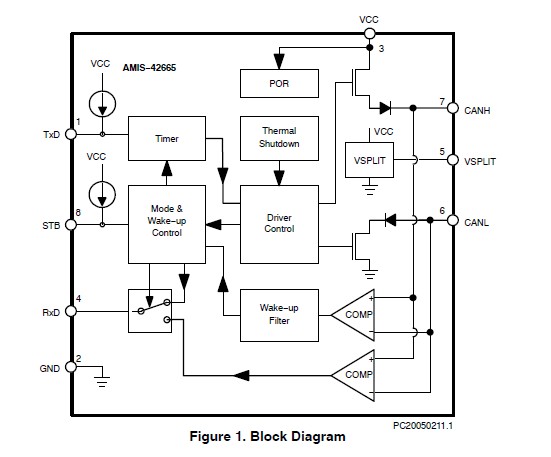

Diagrams
