Product Summary
The TLP181 is a photocoupler GaAs Ired & photo-transistor. The TLP181 is a small outline coupler, suitable for surface mount assembly. The TLP181 consists of a photo transistor optically coupled to a gallium arsenide infrared emitting diode.
Parametrics
TLP181 absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Pulse forward current (100μs pulse, 100pps)IFP: 1 A; (3)Reverse voltage VR: 5 V; (4)Junction temperature Tj: 125 ℃; (5)Storage temperature range Tstg: -55~125 ℃; (6)Operating temperature range Topr: -55~100 ℃; (7)Lead soldering temperature Tsol: 260 (10s)℃; (8)Total package power dissipation PT: 200 mW.
Features
TLP181 features: (1)Collector-emitter voltage: 80V (min.); (2)Current transfer ratio: 50% (min.), Rank GB: 100% (min.); (3)Isolation voltage: 3750Vrms (min.); (4)UL recognized: UL1577, file no. E67349; (5)Option (V4)type: VDE approved: EN 60747-5-2 satisfied, Maximum operating insulation voltage: 565VPK, Highest permissible over voltage: 6000VPK; (6)BSI approved: BS EN60065:2002, certificate no.8285, BS EN60950-1:2002, certificate no.8286.

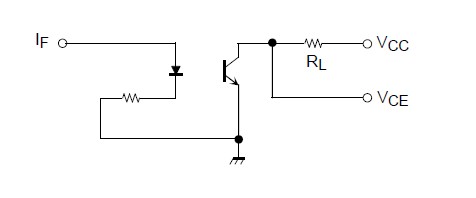

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP181 |
|
PHOTOCOUPLER TRANS OUT 6MFSOP-4 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
TLP181(BL-TPR) |
|
PHOTOCOUPLER TRANS OUT 6MFSOP-4 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
TLP181(BL-TPR,F) |
Toshiba |
Transistor Output Optocouplers 80V Photocoupler 3750 Vrms 200 to 600 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
TLP181(BL-TPR,F,T) |
Toshiba |
Transistor Output Optocouplers DC Transistor Miniflat |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
TLP181(F) |
Toshiba |
Transistor Output Optocouplers 80V Photocoupler 3750 Vrms 500Vpk |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
TLP181(F,T) |
Toshiba |
PHOTOCOUPLER TRANS-OUT 4-SMD |
Data Sheet |
|
|
||||||||||||||||||||
|
TLP181(GB) |
|
PHOTOCOUPLER TRANS OUT 6MFSOP-4 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
TLP181(GB,F) |
Toshiba |
Transistor Output Optocouplers 80V Photocoupler 3750 Vrms 100 to 600 |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
