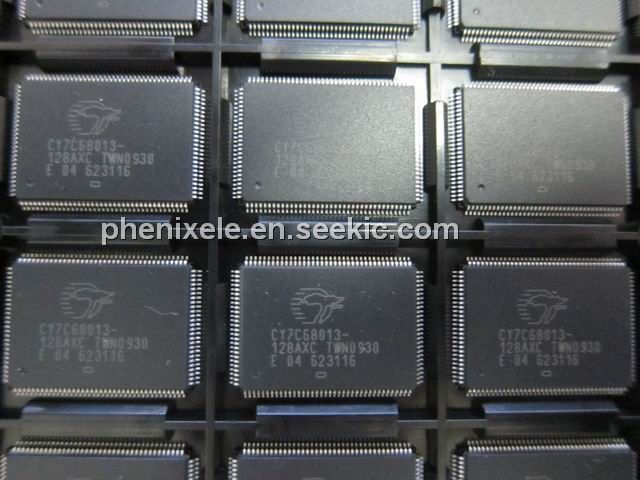

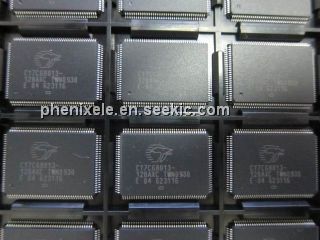

The CY7C68013-128A is a EZ-USB F×2 USB microcontroller. The CY7C68013-128A is the first USB 2.0 integrated microcontroller. By integrating the USB 2.0 transceiver, SIE, enhanced 8051 microcontroller, and a programmable peripheral interface in a single chip, Cypress has created a very cost-effective solution that provides superior time-to-market advantages. The applications of the CY7C68013-128A include: DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Home PNA, Wireless LAN, MP3 players, Networking.
Parametrics
CY7C68013-128A absolute maxing ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Supplied: 0℃ to +70℃; (3)Supply Voltage to Ground Potential: -0.5V to +4.0V; (4)DC Input Voltage to Any Input Pin: 5.25V; (5)DC Voltage Applied to Outputs in High Z State: -0.5V to VCC + 0.5V; (6)Power Dissipation: 936mW; (7)Static Discharge Voltage: > 2000V; (8)Max Output Current, per I/O port: 10mA; (9)Max Output Current, all five I/O ports (128- and 100-pin packages): 50mA.
Features
CY7C68013-128A features: (1)Supports bus-powered applications by using renumeration; (2)3.3V operation; (3)Smart Serial Interface Engine; (4)Vectored USB interrupts; (5)Separate data buffers for the SETUP and DATA portions of a CONTROL transfer; (6)Integrated I2C-compatible controller, runs at 100 or 400kHz; (7)48-MHz, 24-MHz, or 12-MHz 8051 operation; (8)Special autovectors for FIFO and GPIF interrupts; (9)Up to 40 general-purpose I/Os.

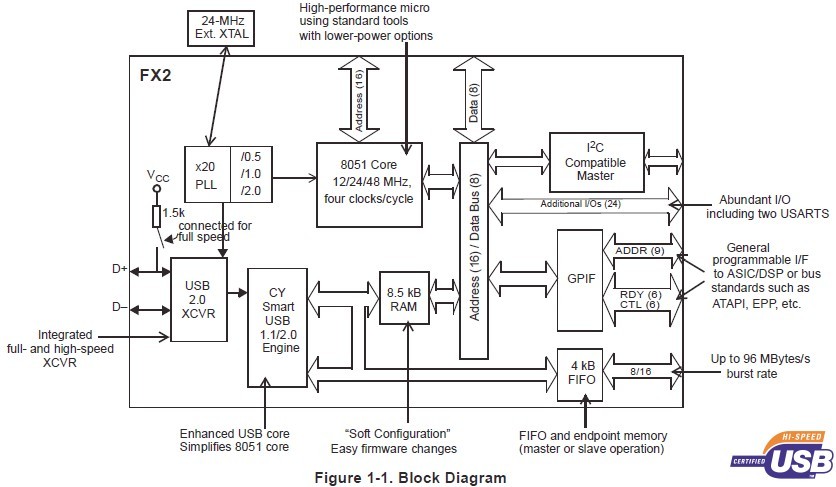

Diagrams
