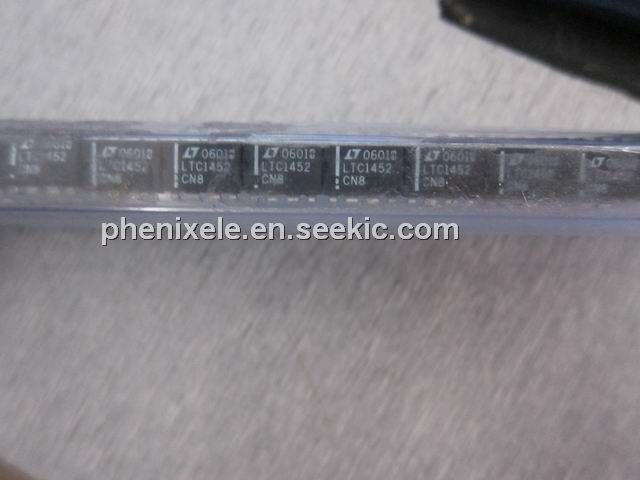

Product Summary

The LTC1452CN8 is a complete single supply, rail-to-rail voltage output 12-bit digital-to-analog converter (DAC) in an SO-8 package. The LTC1452CN8 includes an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface. Applications of the LTC1452CN8 include: Digital Calibration,Industrial Process Control, Automatic Test Equipment and Cellular Telephones.

Parametrics

LTC1452CN8 absolute maximum ratings: (1) Vcc to GND: -0.5V to 7.5V; (2) TTL Input Voltage: -0.5V to 7.5V; (3) Vout, Dout: -0.5V to 7.5V; (3) Vout, Dout: -05 to Vcc +0.5V; (4) REF: -05 to Vcc +0.5V; (5) Maximum Junction Temperature Commercial: 0°C to 70°C, Industrial: -40°C to 85°C; (6) Storage Temperature Range: -65°C to 150°C; (7) Lead Temperature (Soldering, 10 sec) : 300°C.

Features

LTC1452CN8 features: (1) 12-Bit Resolution; (2) Buffered True Rail-to-Rail Voltage Output; (3) 3V to 5V Operation , I : 225μA Typ; (4) Multiplying Version; (5) SO-8 Package; (6) -Wire Cascadable Serial Interface; (7) Maximum DNL Error: 0.5LSB; (8) Schmitt Trigger on Clock Input Allows Direct Optocoupler Interface.

Diagrams

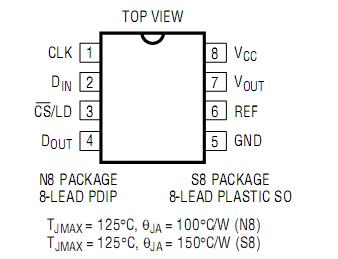

LTC1452CN8 pin connection
