Product Summary

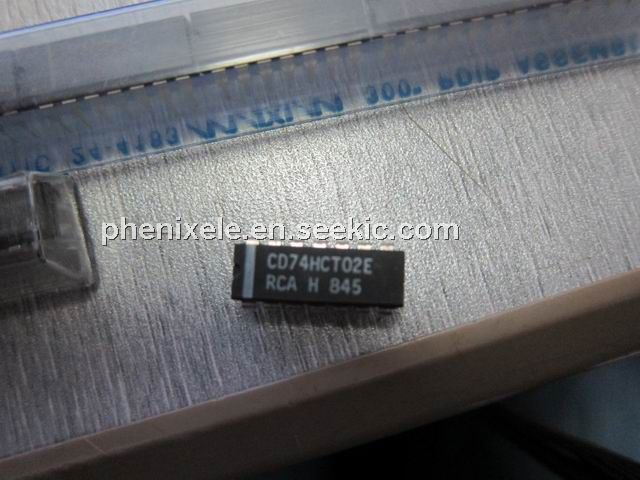

The CD74HCT02E logic gates utilize silicon-gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. The CD74HCT02E has the ability to drive 10 LSTTL loads. The HCT logic family is functionally pin compatible with the standard LS logic family.
Parametrics
CD74HCT02E absolute maximum ratings: (1)DC Supply Voltage, VCC: -0.5V to 7V; (2)DC Input Diode Current, IIK For VI < -0.5V or VI > VCC + 0.5V : ±20mA; (3)DC Output Diode Current, IOK For VO < -0.5V or VO > VCC + 0.5V: ±20mA; (4)DC Output Source or Sink Current per Output Pin, IO For VO > -0.5V or VO < VCC + 0.5V : ±25mA; (5)DC VCC or Ground Current, ICC or IGND: ±50mA; (6)Temperature Range (TA): -55°C to 125°C.
Features
CD74HCT02E features: (1)Buffered Inputs; (2)Typical Propagation Delay: 7ns at VCC = 5V, CL = 15pF, TA = 25°C; (3)Fanout (Over Temperature Range); (4)Wide Operating Temperature Range: -55°C to 125°C; (5)Balanced Propagation Delay and Transition Times; (6)Significant Power Reduction Compared to LSTTL Logic ICs; (7)2V to 6V Operation; (8)High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V; (9)4.5V to 5.5V Operation; (10)Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V (Min); (11)CMOS Input Compatibility, Il ≤ 1μA at VOL, VOH.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD74HCT02E |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Quad 2-Input |
Data Sheet |
|
|
||||||||||||
|
CD74HCT02EE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Hi-Speed CMOS Logic Quad 2-Inp NOR Gate |
Data Sheet |
|
|
||||||||||||
