Product Summary

The BYS10-45 is a schottky barrier rectifier.

Parametrics

BYS10-45 absolute maximum ratings: (1)Reverse voltage Repetitive peak reverse voltage: 45 V; (2)Peak forward surge current tp=10ms, half sinewave IFSM: 30 A; (3)Average forward current IFAV: 1.5 A; (4)Junction and storage temperature range Tj=Tstg: –55 to +150℃; (5)Reverse current VR=VRRM, Tj=100℃ IR: 10 mA.


Features

BYS10-45 features: (1)High efficiency; (2)Low power losses; (3)Very low switching losses; (4)Low reverse current; (5)High surge capability.

Diagrams

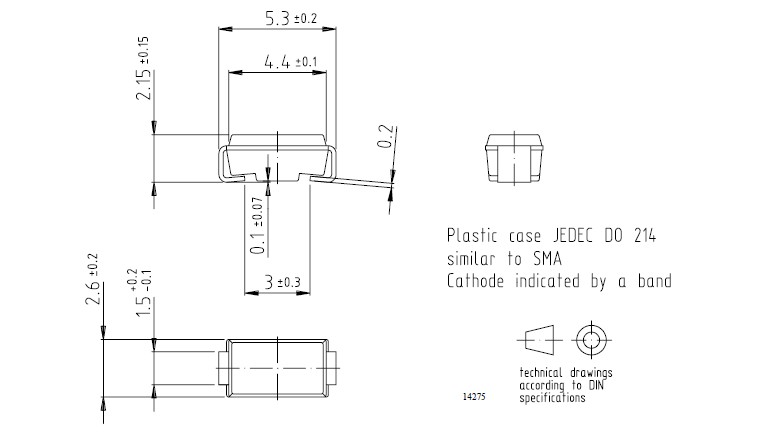

BYS10-45 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BYS10-45
BYS10-45
Other

Data Sheet
Negotiable
BYS10-45/TR
BYS10-45/TR
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 45 Volt 1.0 Amp 40 Amp IFSM
Data Sheet
Negotiable
BYS10-45/TR3
BYS10-45/TR3
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 45 Volt 1.0 Amp 40 Amp IFSM
Data Sheet
0-1: $0.09
1-10: $0.08
10-50: $0.08
50-100: $0.07
BYS10-45HE3/TR
BYS10-45HE3/TR
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 45 Volt 1.0 Amp 40 Amp IFSM
Data Sheet
0-1: $0.10
1-50: $0.09
50-100: $0.08
100-500: $0.06
BYS10-45HE3/TR3
BYS10-45HE3/TR3
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 45 Volt 1.0 Amp 40 Amp IFSM
Data Sheet
0-1: $0.10
1-10: $0.10
10-50: $0.09
50-100: $0.08
BYS10-45-TR
BYS10-45-TR
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 1.5 Amp 25 Volt
Data Sheet
Negotiable
BYS10-45-E3/TR3
BYS10-45-E3/TR3
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 45 Volt 1.0 Amp 40 Amp IFSM
Data Sheet
0-1: $0.59
1-10: $0.58
10-50: $0.55
50-100: $0.47
BYS10-45-E3/TR
BYS10-45-E3/TR
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 1.5 Amp 45 Volt
Data Sheet
0-1: $0.09
1-50: $0.08
50-100: $0.08
100-500: $0.06
