Product Summary
The 2SC5195-T1 is a microwave low noise amplifier.
Parametrics
2SC5195-T1 absolute maximum ratings: (1)Collector to Base Voltage VCBO: 9 V; (2)Collector to Emitter Voltage VCEO: 6 V; (3)Emitter to Base Voltage VEBO: 2 V; (4)Collector Current IC: 100 mA; (5)Total Power Dissipation PT: 125 mW; (6)Junction Temperature Tj: 150 °C; (7)Storage Temperature Tstg: –65 to +150 °C.
Features
2SC5195-T1 features: (1)Low Voltage Operation, Low Phase Distortion; (2)Low Noise: NF = 1.5 dB TYP. @VCE = 3 V, IC = 7 mA, f = 2 GHz, NF = 1.5 dB TYP. @VCE = 1 V, IC = 3 mA, f = 2 GHz; (3)Large Absolute Maximum Collector Current IC = 100 mA; (4)Supercompact Mini Mold Package.

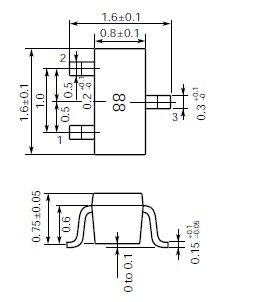

Diagrams
