Product Summary
The NTF3055L108T1G is the 3.0 A, 60 V, logic level, N-Channel power MOSFET which is designed for low voltage, high speed switching applications in power supplies, converters and power motor controls and bridge circuits.
Parametrics
NTF3055L108T1G absolute maximum ratings: (1)Drain-to-Source Voltage: 60 Vdc; (2)Drain-to-Gate Voltage (RGS = 1.0 MΩ): 60 Vdc; (3)Gate-to-Source Voltage: Continuous, ± 15 Vdc; Non-repetitive(tp ≤ 10 ms), ± 20Vpk; (4)Drain Current: Continuous @ TA = 25℃, 3.0A; Continuous @ TA = 100℃, 1.4A; Single Pulse (tp ≤ 10 μs), 9.0A; (5)Total Power Dissipation @ TA = 25℃ (Note 1): 2.1W; (6)Total Power Dissipation @ TA = 25℃ (Note 2): 1.3W; (7)Derate above 25℃: 0..14W/℃; (8)Operating and Storage Temperature Range: -55 to 175℃; (9)Single Pulse Drain-to-Source Avalanche: 74 mJ; (10)Maximum Lead Temperature for Soldering Purposes: 260℃.
Features
NTF3055L108T1G features: Pb-Free Packages are Available.

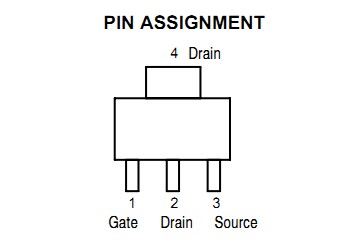

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NTF3055L108T1G |
ON Semiconductor |
MOSFET 60V 3A N-Channel |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
|
NTF3055-100T1 |
ON Semiconductor |
MOSFET 60V 3A N-Channel |
Data Sheet |
Negotiable |
|
||||||||||||||
|
NTF3055-100T3 |
ON Semiconductor |
MOSFET 60V 3A N-Channel |
Data Sheet |
Negotiable |
|
||||||||||||||
|
NTF3055L108T1 |
ON Semiconductor |
MOSFET 60V 3A N-Channel |
Data Sheet |
Negotiable |
|
||||||||||||||
|
NTF3055L108T1G |
ON Semiconductor |
MOSFET 60V 3A N-Channel |
Data Sheet |
|
|
||||||||||||||
|
NTF3055L175T1G |
ON Semiconductor |
MOSFET 60V 2A N-Channel |
Data Sheet |
|
|
||||||||||||||
|
NTF3055L175T3 |
ON Semiconductor |
MOSFET 60V 2A N-Channel |
Data Sheet |
Negotiable |
|
||||||||||||||
