AT28C64B-15TU

high-performance electrically-erasable and programmable readonly memory, 6.25V, 10 μA, 150 ns, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.00

PartNumber:: AT28C64B-15TU

Brand:: ATMEL Corporation - ATMEL | Pack: TSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Erin's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-19

From Other Seller

Part Number:AT28C64B-15TU
US $2.00 - 3.00
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

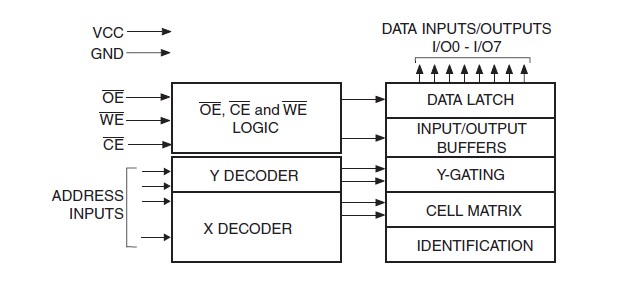

The AT28C64B-15TU is a high-performance electrically-erasable and programmable readonly memory (EEPROM). Its 64K of memory is organized as 8,192 words by 8 bits. Manufactured with Atmels advanced nonvolatile CMOS technology, the device offers access times to 150 ns with power dissipation of just 220 mW. When the device is deselected, the CMOS standby current is less than 100 μA. The AT28C64B-15TU is accessed like a Static RAM for the read or write cycle without the need for external components. The AT28C64B-15TU contains a 64-byte page register to allow writing of up to 64 bytes simultaneously. During a write cycle, the addresses and 1 to 64 bytes of data are internally latched, freeing the address and data bus for other operations. Following the initiation of a write cycle, the device will automatically write the latched data using an internal control timer.

Parametrics

AT28C64B-15TU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature : -65℃ to +150℃; (3)All Input Voltages (including NC Pins)with Respect to Ground : -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground : -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground : -0.6V to +13.5V; (6)ILI Input Load Current VIN = 0V to VCC + 1V: 10 μA; (7)ILO Output Leakage Current VI/O = 0V to VCC: 10 μA; (8)tACC Address to Output Delay: 150 ns.

Features

AT28C64B-15TU features: (1)Fast Read Access Time – 150 ns; (2)Automatic Page Write Operation Internal Address and Data Latches for 64 Bytes; (3)Hardware and Software Data Protection; (4)DATA Polling and Toggle Bit for End of Write Detection; (5)High Reliability CMOS Technology; (6)Single 5V ±10% Supply; (7)CMOS and TTL Compatible Inputs and Outputs; (8)JEDEC Approved Byte-wide Pinout; (9)Industrial Temperature Ranges; (10)Green (Pb/Halide-free)Packaging Option.
