M48T35-70PC1

M48T35-70PC1, non-volatile static RAM and real time clock, 7 V, 20 mA, 1 W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.56~5.56 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	5.56 / Piece

PartNumber:: M48T35-70PC1

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Erin's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-16

From Other Seller

Part Number:M48T35-70PC1
US $5.56 - 5.56
Quantity:

piece

Product Summary

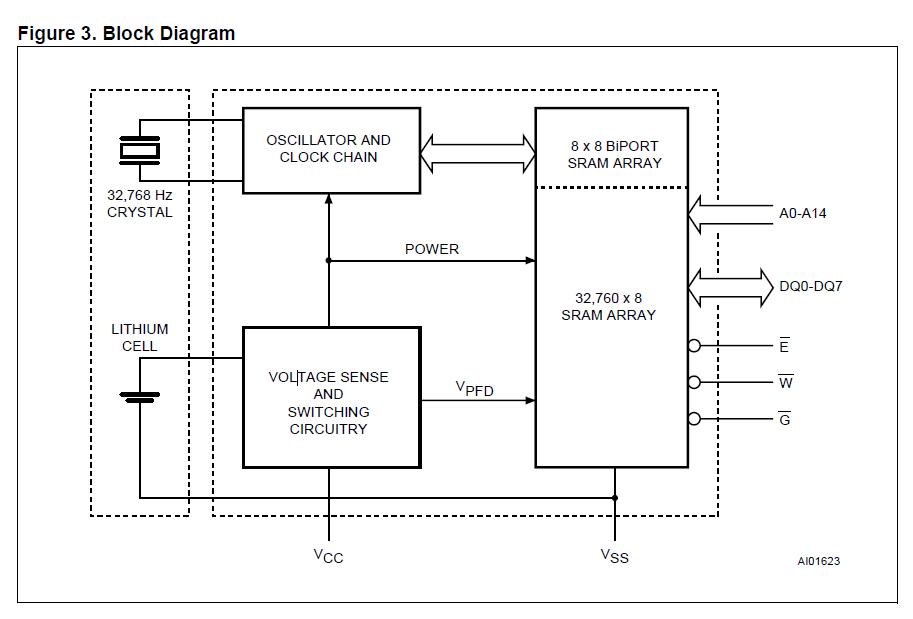

The M48T35-70PC1 is a 32Kbx8 non-volatile static RAM and real time clock. The monolithic chip is available in two special packages to provide a highly integrated battery backed-up memory and real time clock solution.

Parametrics

M48T35-70PC1 absolute maximum ratings: (1)TSTG, Storage Temperature (VCC Off, Oscillator Off): –40 to 85 ℃; (2)TSLD, Lead Solder Temperature for 10 seconds: 260 ℃; (3)VIO, Input or Output Voltages: –0.3 to 7 V; (4)VCC, Supply Voltage: –0.3 to 7 V; (5)IO, Output Current: 20 mA; (6)PD, Power Dissipation: 1 W.

Features

M48T35-70PC1 features: (1)integrated ultra low power sram, real time clock, power-fail control; (2)circuit and battery; (3)bytewide RAM-like clock access; (4)bcd coded year, month, day, date, hours, minutes and seconds; (5)frequency test output for real time clock; (6)automatic power-fail chip deselect and write protection; (7)self-contained battery and crystal in the caphat dip package; (8)SOIC package provides direct connection for a snaphat housing containing the battery and crystal.
