Product Summary

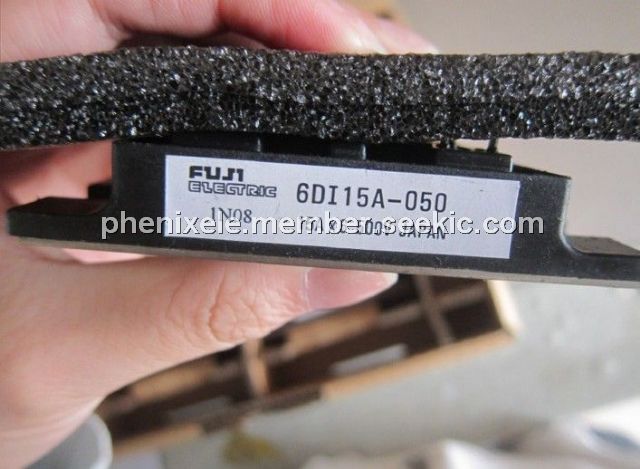

The 6DI15A-050 is a power transistor module from Fuji Electric. Applications include: AC motor controls, uninterruptible power supply.

Parametrics

6DI15A-050 absolute maximum ratings: (1)Collector-to-Base Voltage, VCBO: 600V; (2)Collector-to-Emitter Voltage, VCES: 600V; (3)Collector-to-Emitter Voltage, VCEO: 450V; (4)Emitter-to-Base Voltage, VEBO: 6V; (5)Collector Current, IC: 15A; (6)Collector Current (Pulse), ICP: 30A; (7)Base Current, IB: 2A; (8)Collector Dissipation, PC: 80W; (9)Junction Temperature, Tj: 150℃; (10)Storage Temperature, Tstg: -40 to +125℃.

Features

6DI15A-050 features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated.

Diagrams

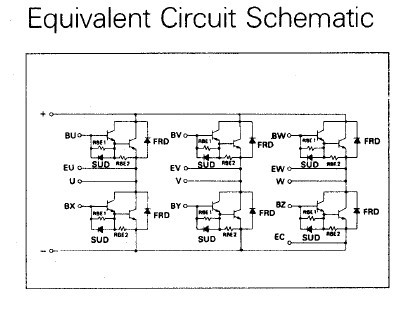

6DI15A-050 diagram

6DI100A-050
6DI100A-050
Other

Data Sheet
Negotiable
