Product Summary

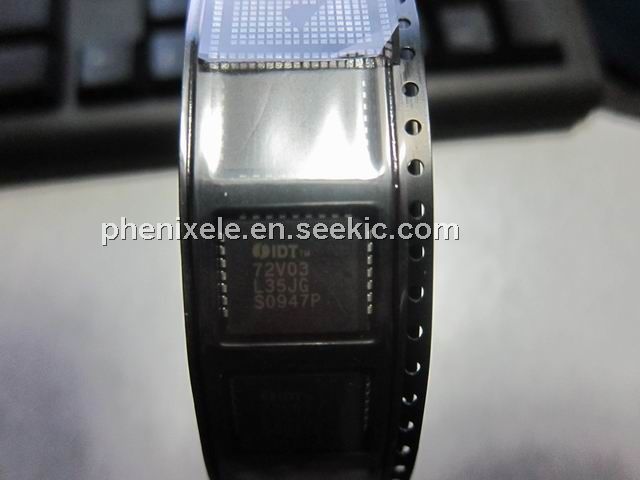

The IDT72V03L35J is a dual-port FIFO memory that operate at a power supply voltage (Vcc) between 3.0V and 3.6V. Their architecture, functional operation and pin assignments are identical to those of the IDT72V03L35J. The IDT72V03L35J load and empty data on a first-in/first-out basis. The IDT72V03L35J uses Full and Empty flags to prevent data overflow and underflow and expansion logic to allow for unlimited expansion capability in both word size and depth.
Parametrics
IDT72V03L35J absolute maximum ratings: (1)VTERM Terminal Voltage with Respect to GND: –0.5 to +7.0 V; (2)TA Operating Temperature: 0 to +70 °C; (3)TBIAS Temperature Under Bias: –55 to +125 °C; (4)TSTG Storage Temperature: –55 to +125 °C; (5)IOUT DC Output: 50 mA.
Features
IDT72V03L35J features: (1)3.3V family uses 70% less power than the 5 Volt 7201/ 02/03/04 family; (2)512 x 9 organization (72V01); (3)1024 x 9 organization (72V02); (4)2048 x 9 organization (72V03); (5)4096 X 9 organization (72V04); (6)Functionally compatible with 720x family; (7)25 ns access time; (8)Asynchronous and simultaneous read and write; (9)Fully expandable by both word depth and/or bit width; (10)Status Flags: Empty, Half-Full, Full; (11)Auto-retransmit capability; (12)Available in 32-pin PLCC and 28-pin SOIC Package (to be determined); (13)Industrial temperature range (-40°C to +85°C)is available, tested to military electrical specifications.
alt="IDT72V03L35J pin connection"

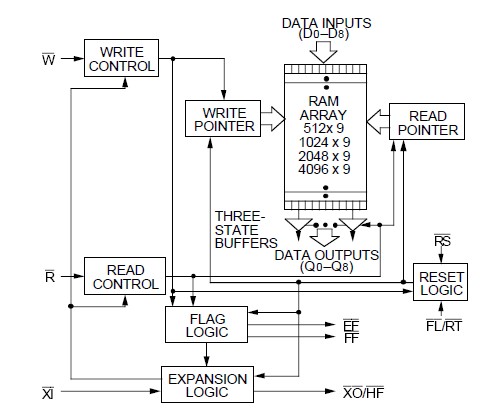

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IDT72V03L35J |
|
IC ASYNCH 2048X9 35NS 32-PLCC |
Data Sheet |
|
|
||||||
|
IDT72V03L35J8 |
|
IC ASYNCH 2048X9 35NS 32-PLCC |
Data Sheet |
|
|
||||||
