Product Summary

The AN2131SC is an EZ-USB. The AN2131SC can be plugged in anytime, even when the PC is turned on. The AN2131SC is fast enough for printers, CD-quality audio, and scanners.

Parametrics

AN2131SC absolute maximum ratings: (1)Storage Temperature:-65℃ to +150℃; (2)Ambient Temperature Under Bias:-40℃ to +85℃; (3)Supply Voltage to Ground Potential:-0.5V to +4.0V; (4)DC Input Voltage to Any Pin:-0.5V to +5.8V.

Features

AN2131SC features: (1)4-clock cycle, as compared to the 12-clock cycle of a standard 8051, giving a 3X speed improvement; (2)Dual data pointers for faster memory-to-memory transfers; (3)Two UARTs; (4)Three counter-timers; (5)An expanded interrupt system; (6)24-MHz clock; (7)256 bytes of internal register RAM.

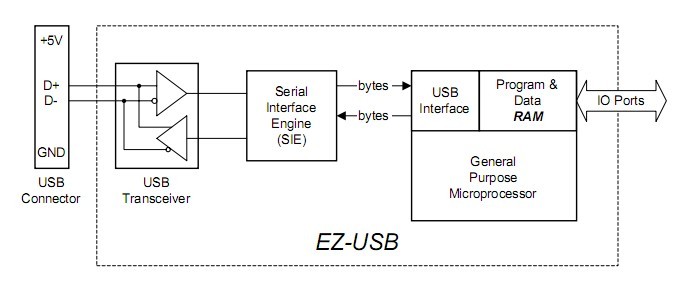

Diagrams

AN2131SC pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AN2131SC
AN2131SC


IC MCU 8051 8K RAM 24MHZ 44QFP

Data Sheet

Negotiable
