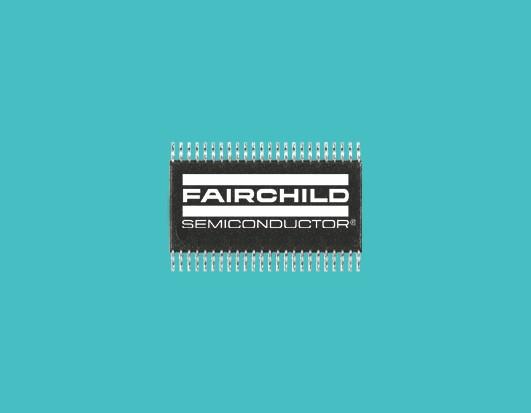

74LCX16245MEA

74LCX16245MEA, sixteen non-inverting bidirectional buffer, 7.0 V, 50 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece

PartNumber:: 74LCX16245MEA

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Erin's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-06

From Other Seller

Part Number:74LCX16245MEA
US $0.50 - 0.50
Quantity:

piece

Product Summary

The 74LCX16245MEA contains sixteen non-inverting bidirectional buffer with 3-STATE outputs and is intended for bus oriented applications. The 74LCX16245MEA is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The device is byte controlled. Each byte has separate control inputs which could be shorted together for full 16-bit operation. The T/R inputs determine the direction of data flow through the 74LCX16245MEA. The OE inputs disable both the A and B ports by placing them in a high impedance state. The 74LCX16245MEA is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

Parametrics

74LCX16245MEA absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to 7.0 V; (2)VI DC Input Voltage: -0.5 to 7.0 V; (3)VO DC Output Voltage : 0.5 to 7.0 Output in 3-STATE V : 0.5 to VCC 0.5 Output in HIGH or LOW State (Note 5); (4)IIK DC Input Diode Current : 50 VI GND mA; (5)IOK DC Output Diode Current : 50 VO GND mA 50 VO VCC; (6)IO DC Output Source/Sink Current: 50 mA; (7)ICC DC Supply Current per Supply Pin: 100 mA; (8)IGND DC Ground Current per Ground Pin: 100 mA; (9)TSTG Storage Temperature : 65 to 150°C.

Features

74LCX16245MEA features: (1)5V tolerant inputs and outputs; (2)2.3V–3.6V VCC specifications provided; (3)4.5 ns tPD max (VCC 3.3V), 20 PA ICC max; (4)Power down high impedance inputs and outputs; (5)Supports live insertion/withdrawal (Note 1); (6)r24 mA output drive (VCC 3.0V); (7)Uses patented noise/EMI reduction circuitry; (8)Latch-up performance exceeds 500 mA; (9)ESD performance: Human body model: 2000V, Machine model: 200V; (10)Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA).
