Product Summary

The NJM78L05UA is a 3-terminal positive voltage regulator. The NJM78L05UA is mounted in EMP8 package of the surface mount package. The EMP8 package possible flow soldering.

Parametrics

NJM78L05UA absolute maximum ratings: (1)Input Voltage VIN: 30 V; (2)Power Dissipation PD: 500 mW; (3)Operating Temperature Range Topr: -40 ∼ +85 °C; (4)Storage Temperature Range Tstg: -40 ∼ +150 °C; (5)Quiescent Current IQ VIN=10V, Io=0mA: - 2.0 to 6 mA.

Features

NJM78L05UA features: (1)Internal Short Circuit Current Limit; (2)Internal Thermal Overload Protection; (3)Excellent Ripple Rejection; (4)Guaranteed 100mA Output Current; (5)Bipolar Technology; (6)Package Outline T0-92,SOT-89,EMP8.

Diagrams

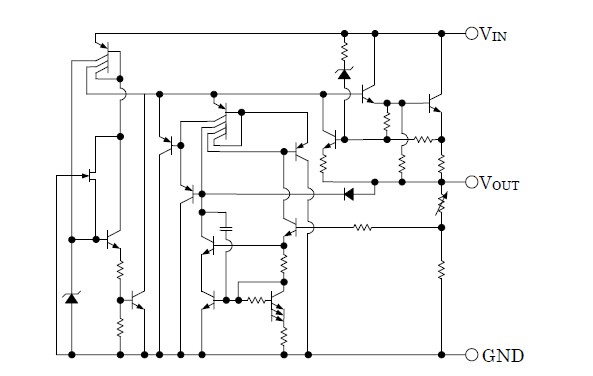

NJM78L05UA pin connection
