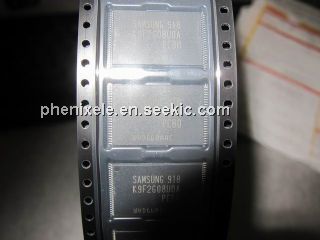

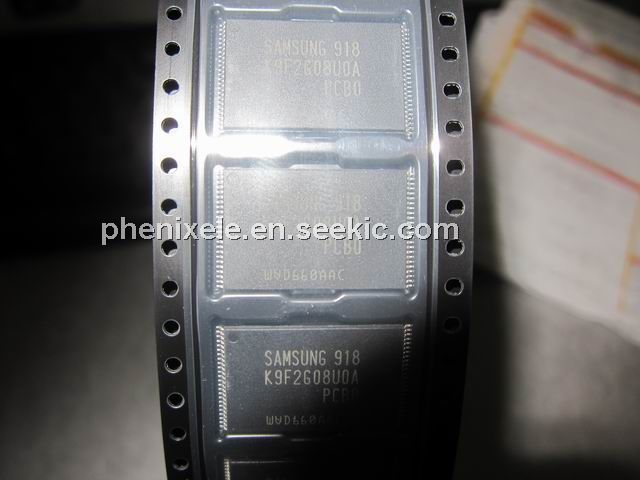

Product Summary

Offered in 256Mx8bit, the K9F2G08U0A-PCB0 is a 2G-bit NAND Flash Memory with spare 64M-bit. The K9F2G08U0A-PCB0 provides the most costeffective solution for the solid state application market. The K9F2G08U0A-PCB0 serves as the ports for address and data input/output as well as command input. The on-chip write controller automates all program and erase functions including pulse repetition, where required, and internal verification and margining of data. Even the write-intensive systems can take advantage of the K9F2G08X0As extended reliability of 100K program/erase cycles by providing ECC(Error Correcting Code) with real time mapping-out algorithm.

Parametrics

K9F2G08U0A-PCB0 absolute maximum ratings: (1)Voltage on any pin relative to VSS VCC: -0.6 to +2.45V, -0.6 to +4.6V; (2)Voltage on any pin relative to VSS VIN: -0.6 to +2.45V, -0.6 to +4.6 V; (3)Voltage on any pin relative to VSS VI/O: -0.6 to Vcc + 0.3 (< 2.45V)V, -0.6 to Vcc + 0.3 (< 4.6V)V; (4)Temperature Under Bias TBIAS: -10 to +125 °C; (5)Storage Temperature TSTG: -65 to +150 °C; (6)Short Circuit Current IOS: 5 mA.

Features

K9F2G08U0A-PCB0 features: (1)Fast Write Cycle Time Page Program time : 200μs(Typ.), Block Erase Time : 1.5ms(Typ.); (2)Command/Address/Data Multiplexed I/O Port; (3)Hardware Data Protection - Program/Erase Lockout During Power Transitions; (4)Reliable CMOS Floating-Gate Technology -Endurance : 100K Program/Erase Cycles(with 1bit/512Byte ECC), - Data Retention : 10 Years; (5)Command Driven Operation; (6)Intelligent Copy-Back with internal 1bit/528Byte EDC; (7)Unique ID for Copyright Protection.

Diagrams

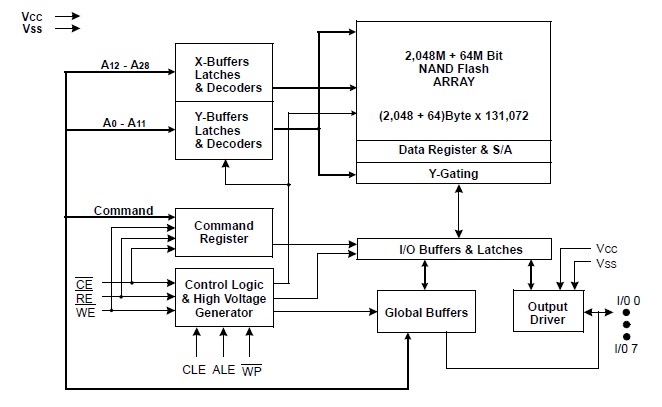

K9F2G08U0A-PCB0 pin connection
