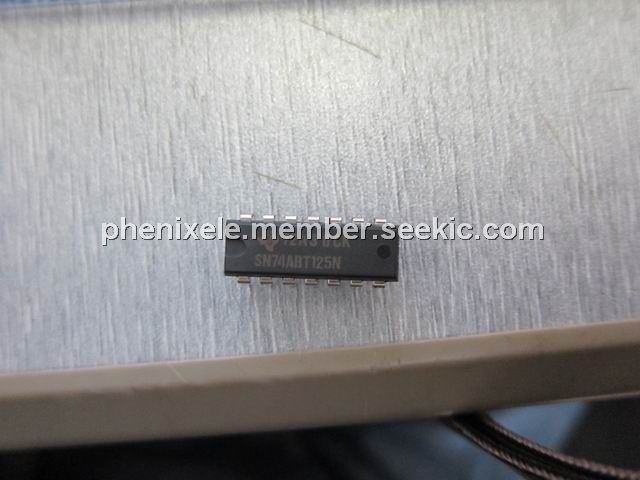

Product Summary
The SN74ABT125N is a quadruple bus buffer gate. The SN74ABT125N features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high. The SN74ABT125N is fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Parametrics
SN74ABT125N absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Voltage range applied to any output in the high or power-off state, VO: -0.5 V to 5.5 V; (4)Current into any output in the low state, IO: 96 mA; (5)Input clamp current, IIK (VI < 0): -18 mA; (6)Output clamp current, IOK (VO < 0): -50 mA; (7)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74ABT125N features: (1)Typical VOLP (Output Ground Bounce)<1 V at VCC = 5 V, TA = 25℃; (2)High-Drive Outputs (–32-mA IOH, 64-mA IOL); (3)Ioff and Power-Up 3-State Support Hot Insertion; (4)Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17; (5)ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A).

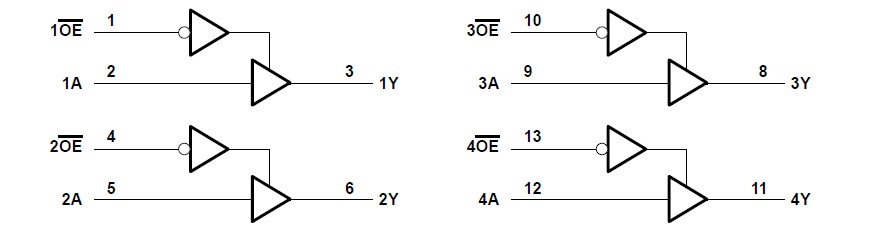

Diagrams
