Product Summary

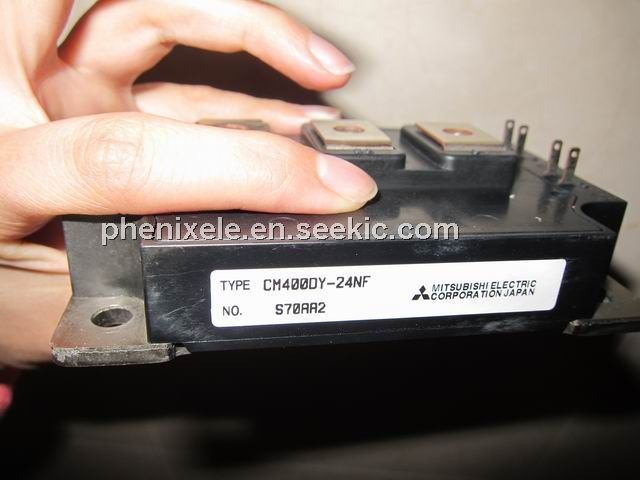

The CM400DY-24NF is an IGBT module suitable for General purpose inverters & Servo controls, etc.

Parametrics

CM400DY-24NF absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Maximum collector dissipation, PC: 1470W; (4)Junction temperature, Tj: -40 to 150℃; (5)Storage temperature, Tstg: -40 to 125℃; (6)Isolation voltage, Viso: 2500V; (7)Weight: 580g; (8)Collector current, IC: 400A; ICM: 800A; (9)Emitter current, IE: 400A; IEM: 800A; (10)Torque strength: 3.5 to 4.5Nm.

Features

CM400DY-24NF features: (1)IC: 400A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

CM400DY-24NF pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM400DY-24NF
CM400DY-24NF


IGBT MOD DUAL 1200V 400A NF SER

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM400DU-12F
CM400DU-12F


IGBT MOD DUAL 600V 400A F SER

Data Sheet

0-1: $123.61
CM400DU-12H
CM400DU-12H


IGBT MOD DUAL 600V 400A U SER

Data Sheet

0-1: $133.77
CM400DU-12NFH
CM400DU-12NFH


IGBT MOD DUAL 600V 400A NFH SER

Data Sheet

0-1: $122.22
1-10: $116.32
10-100: $109.57
100-250: $107.89
250-500: $105.36
500-1000: $101.15
CM400DU-24F
CM400DU-24F


IGBT MOD DUAL 1200V 400A F SER

Data Sheet

0-1: $203.59
CM400DU-24H
CM400DU-24H


IGBT MOD DUAL 1200V 400A U SER

Data Sheet

0-1: $220.35
CM400DU-24NFH
CM400DU-24NFH


IGBT MOD DUAL 1200V 400A NFH SER

Data Sheet

0-1: $175.79
