Product Summary

The SMBJ26CA is a transient voltage suppressor. Its applications include sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunications.

Parametrics

SMBJ26CA specifications: (1)Peak pulse power dissipation: 600W; (2)Maximum peak pulse current: 14.3A; (3)Maximum reverse leakage current: 1uA; (4)Maximum clamping voltage: 42.1V; (5)Maximum reverse stand-off voltage: 26V; (6)Minimum breakdown voltage: 28.9V; (7)Test current: 1mA; (8)Operating temperature: -55 to 150℃.

Features

SMBJ26CA features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Available in uni-directional and bi-directional; (5)Excellent clamping capability; (6)Very fast response time; (7)600W peak pulse power capability with a 10/1000 μs waveform, repetitive rate; (8)Low incremental surge resistance; (9)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃.

Diagrams

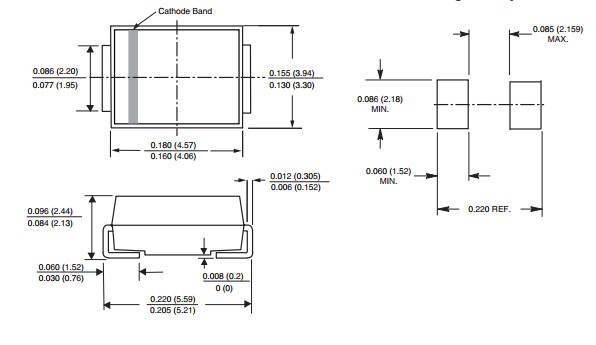

SMBJ26CA pin connection
