Product Summary

The ADCMP600BRJZ-REEL7 is a single-supply TTL/CMOS comparator fabricated on XFCB2, an Analog Devices, Inc. proprietary process. The ADCMP600BRJZ-REEL7 is exceptionally versatile and easy to use. Features include an input range from VEE -0.5 V to VCC + 0.2 V, low noise, TTL-/CMOS-compatible output drivers, and latch inputs with adjustable hysteresis and/or shutdown inputs. The ADCMP600BRJZ-REEL7 offers 5 ns propagation delay with 10 mV overdrive on 3 mA typical supply current.The TTL-/CMOS-compatible output stage is designed to drive up to 5 pF with full timing specs and to degrade in a graceful and linear fashion as additional capacitance is added. The comparator input stage offers robust protection against large input overdrive, and the outputs do not phase reverse when the valid input signal range is exceeded. Latch and programmable hysteresis features are also provided with a unique single-pin control option.

Parametrics

ADCMP600BRJZ-REEL7 absolute maximum ratings: (1)Input Supply Voltage (VCCI to GND): -0.5 V to +6.0 V; (2)Output Supply Voltage (VCCO to GND): -0.5 V to +6.0 V; (3)Positive Supply Differential: -6.0 V to +6.0 V; (4)Operating Temperature, Ambient: -40℃ to +125℃; (5)Operating Temperature, Junction: 150℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Active Gain AV: 85 dB; (8)Sleep Time tSD ICCO < 500 μA: 20 ns; (9)Wake-Up Time tH VOD = 100 mV, output valid: 50 ns.

Features

ADCMP600BRJZ-REEL7 features: (1)Fully specified rail to rail at VCC = 2.5 V to 5.5 V; (2)Input common-mode voltage from -0.2 V to VCC + 0.2 V; (3)Low glitch CMOS-/TTL-compatible output stage; (4)3.5 ns propagation delay; (5)10 mW at 3.3 V; (6)Shutdown pin; (7)Single-pin control for programmable hysteresis and latch; (8)Power supply rejection > 50 dB; (9)Improved replacement for MAX999.

Diagrams

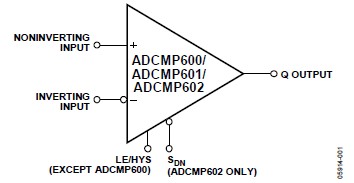

ADCMP600BRJZ-REEL7 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADCMP600BRJZ-REEL7
ADCMP600BRJZ-REEL7

IC COMP TTL/CMOS 1CHAN SOT23-5
Data Sheet
0-1: $2.68
1-10: $2.40
10-25: $2.15
25-100: $1.96
100-250: $1.77
250-500: $1.59
500-1000: $1.34
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADCMP354YKS-REEL7
ADCMP354YKS-REEL7

IC COMP/REF OD ACTIVE HI SC70-4
Data Sheet
0-3000: $0.23
ADCMP564BRQZ
ADCMP564BRQZ

IC COMPARATOR ECL DUAL HS 20QSOP
Data Sheet
0-1: $3.67
1-10: $3.28
10-100: $2.69
100-250: $2.43
250-500: $2.18
500-1000: $1.84
1000-2500: $1.75
ADCMP600BKSZ-RL
ADCMP600BKSZ-RL

IC COMP TTL/CMOS 1CHAN SC70-5
Data Sheet
0-10000: $1.24
ADCMP600BRJZ-R2
ADCMP600BRJZ-R2

IC COMP TTL/CMOS 1CHAN SOT23-5
Data Sheet
0-250: $2.02
ADCMP600BRJZ-REEL7
ADCMP600BRJZ-REEL7

IC COMP TTL/CMOS 1CHAN SOT23-5
Data Sheet
0-1: $2.68
1-10: $2.40
10-25: $2.15
25-100: $1.96
100-250: $1.77
250-500: $1.59
500-1000: $1.34
ADCMP580BCPZ-R2
ADCMP580BCPZ-R2

IC COMPARATOR CML UFAST 16-LFCSP
Data Sheet
0-250: $8.46
